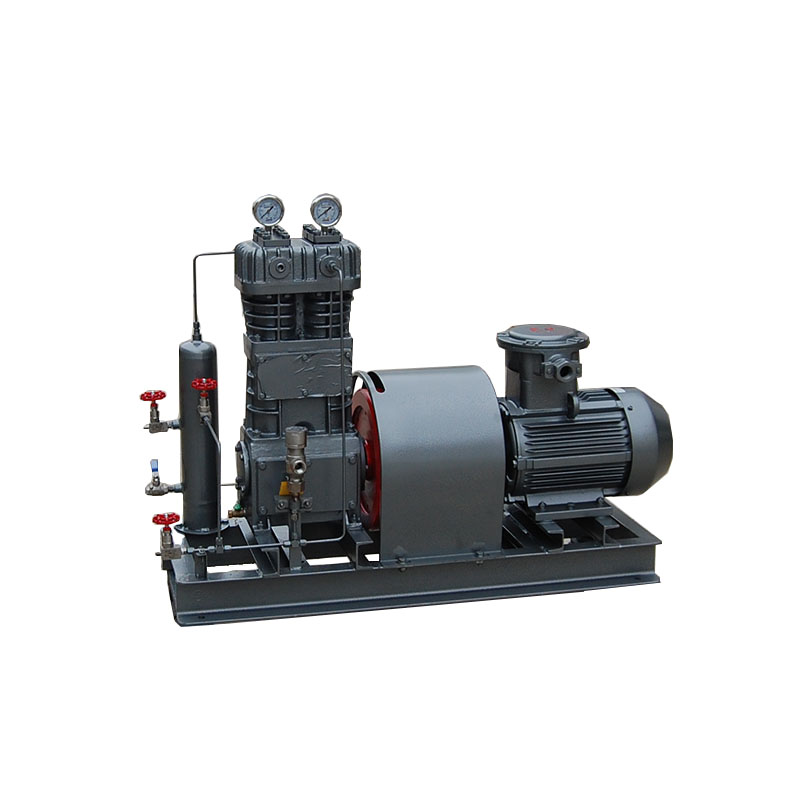

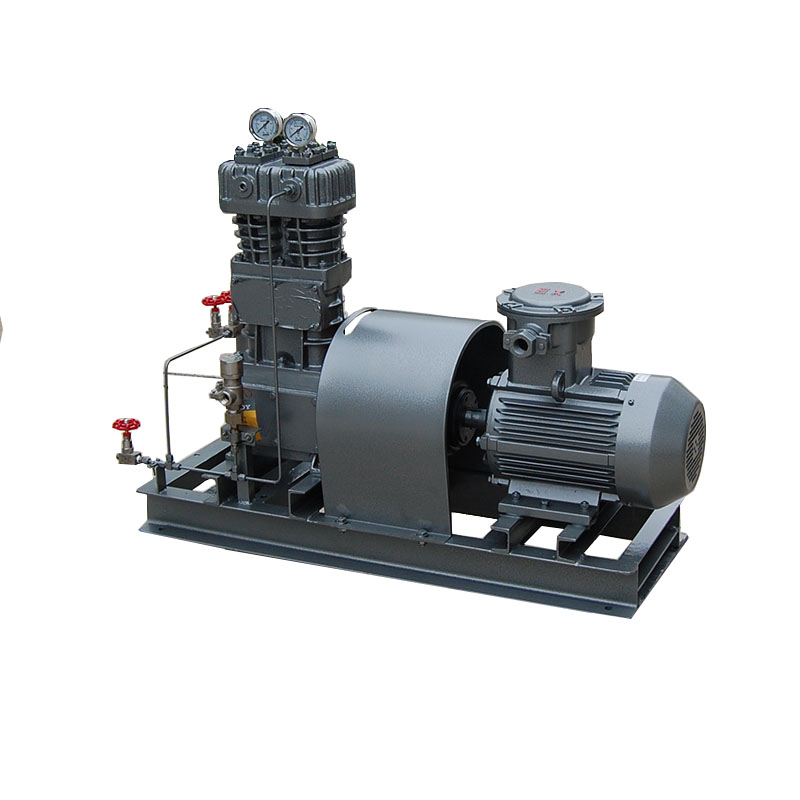

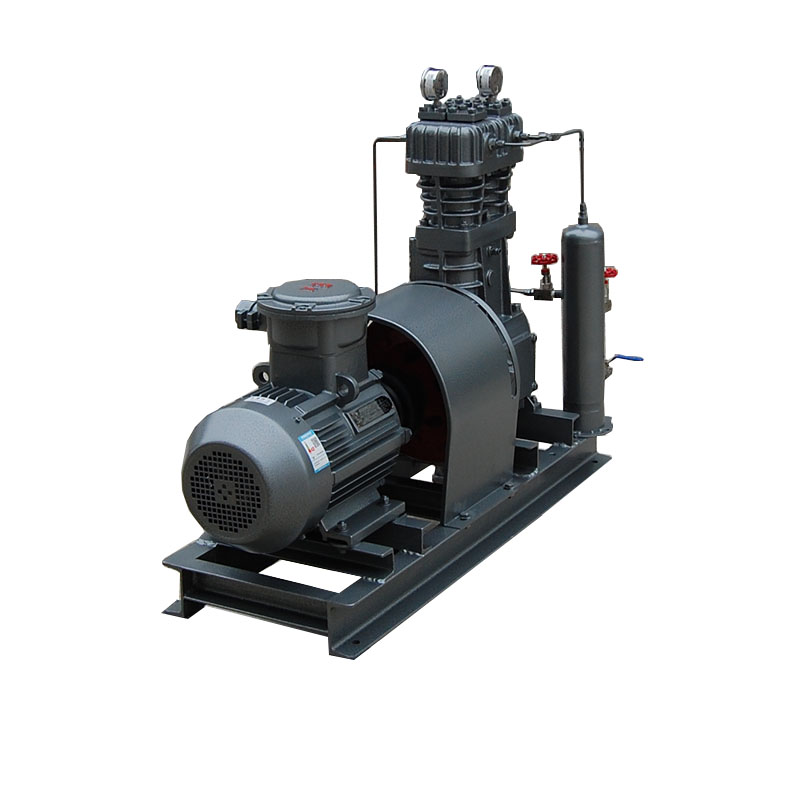

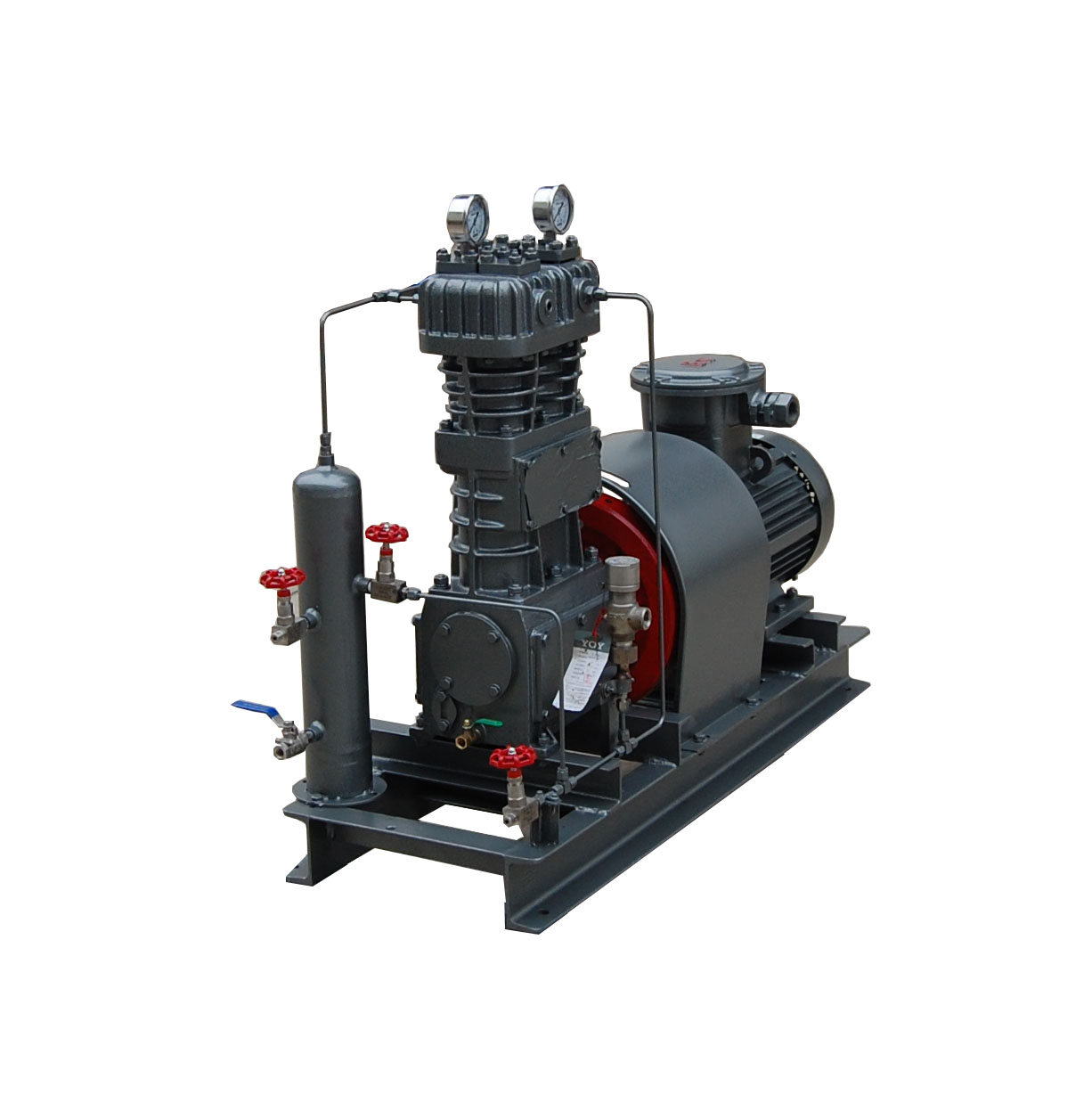

methane compressor

Product Item :
Category： GAS Compressor
INQUIRY EMAIL

Product Description:

1. Product Overview: The methane compressor is a power equipment specially designed for pressurized transportation of methane gas, which is flammable and explosive light hydrocarbon. The equipment is specially optimized for the characteristics of low molecular weight and easy leakage of methane, so as to increase the pressure of methane and meet the technological requirements of methane transportation, storage and reaction.

2. Characteristic performance: the whole machine is explosion-proof, and reliable sealing structure is selected to prevent methane leakage; The unit has over-temperature and over-pressure interlock protection; Precision machining of rotor and impeller to reduce gas leakage; The material is compatible with methane medium, and no chemical reaction will occur; Support continuous long-term stable operation.

3. Application scope: The methane compressor is widely used in coalbed methane mining, biogas upgrading, chemical synthesis, gas transportation, energy storage and other scenarios.

Compressor	Product Model		DW-2.7/6-300
	Type		V type
	Compressed medium		Silane
	Mass flow(KG/h)		7000
	Compression stage		4
	Cylinder number		4
	driving mode		coupling
	Noise (sound pressure level) dB(A)		≤105
	Vibration intensity (MM/s)		8
	Leakage rate		< 0.001%
	Vibration intensity (MM/s)		8
	Leakage rate		< 0.001%
	Cooling mode		Wind cooling
	Rotational speed (r/min)		740★
	Suction pressure(KG )		6
	Discharge Pressure( bar )		300
	Suction temperature (℃)		≤40
	Discharge temperature (℃)		≤160After cooling≤Ambient temp + 10 ℃
	Lubrication type	Crankshaft, connecting rod, cross head	Oil lubrication
		Cylinder, Packing Cylinder, Packing	Oil-free lubrication
motor	Model		YBX3-400L-8
	Rotational speed (r/min)		740★
	Rated voltage (V)		400
	Frequency range（Hz）		50
	Rated current (A)		503
	Rated power (Kw)		250
Compressor size (L×W×H) mm			≈500022002000★
Weight（kg）			≈8000
