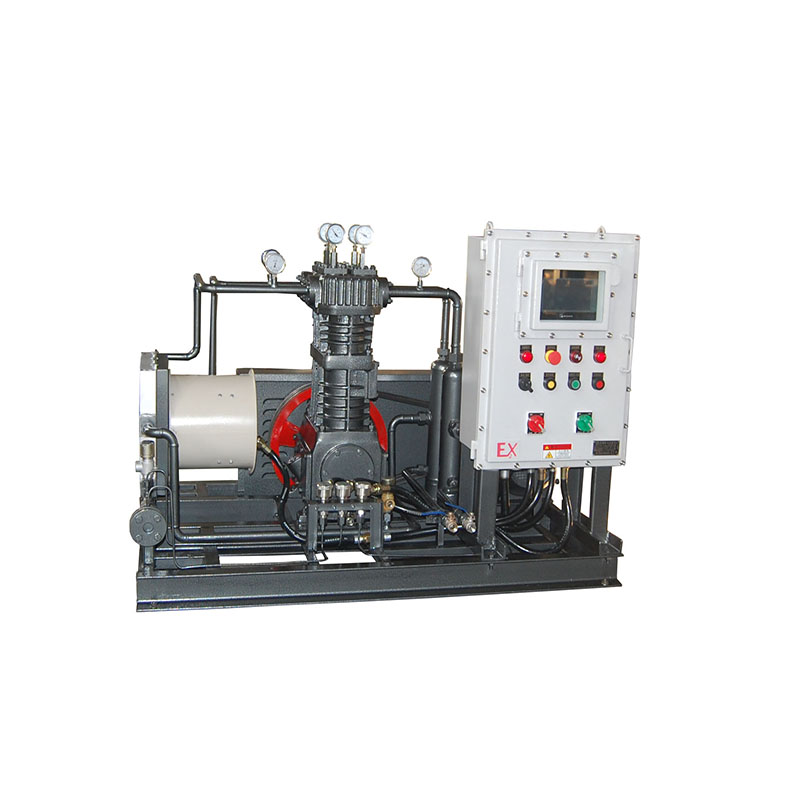

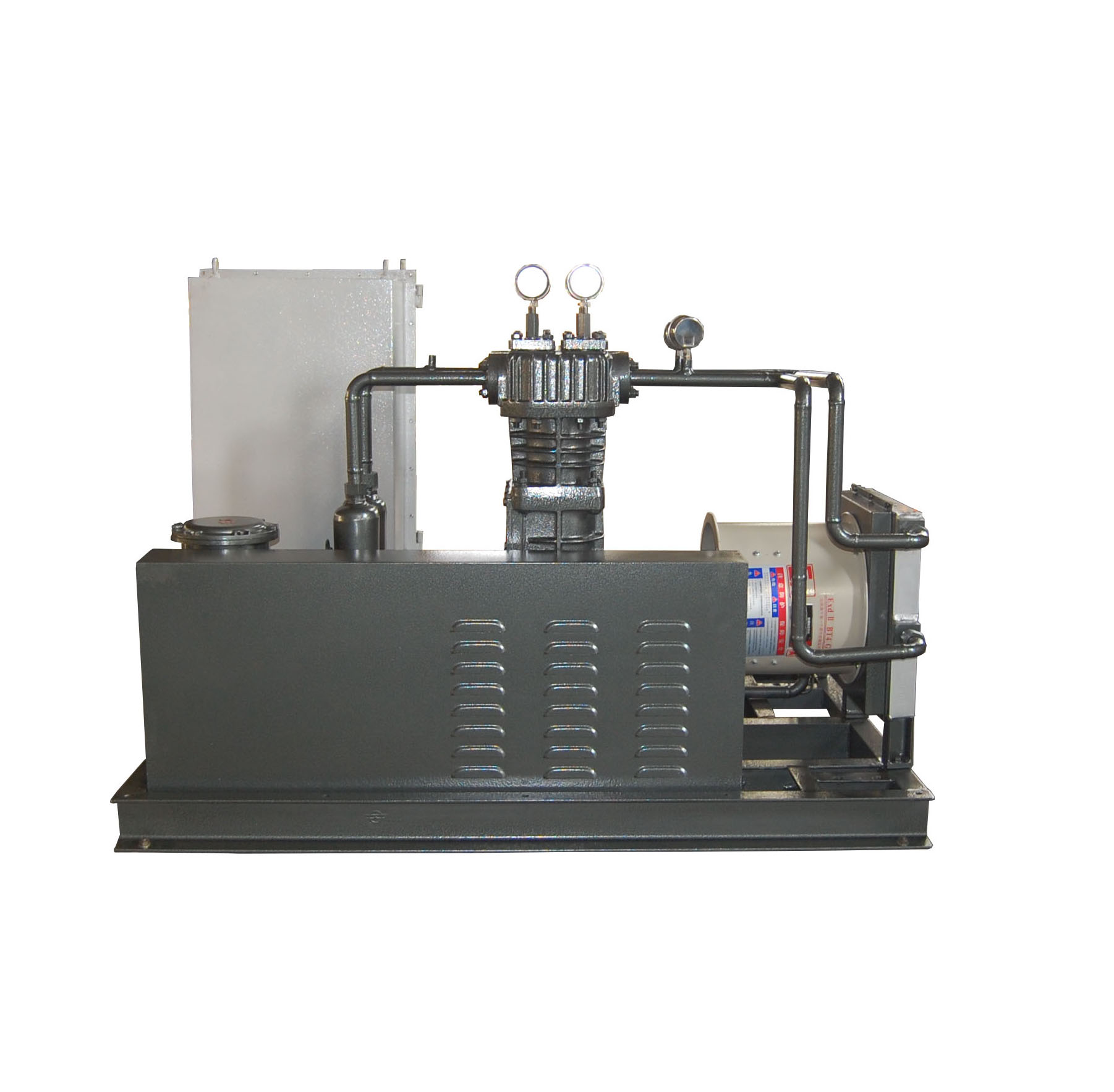

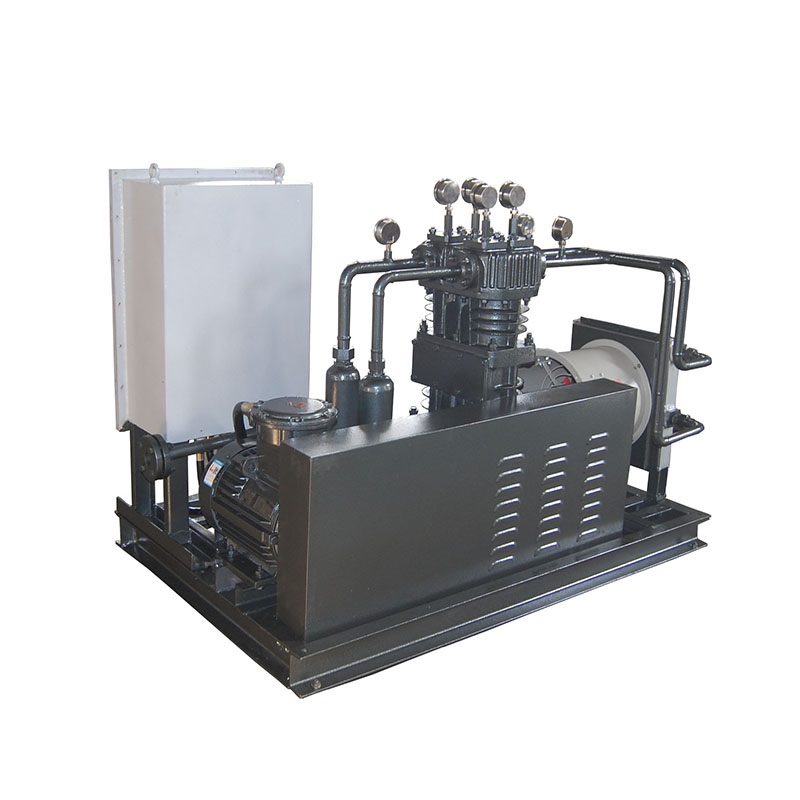

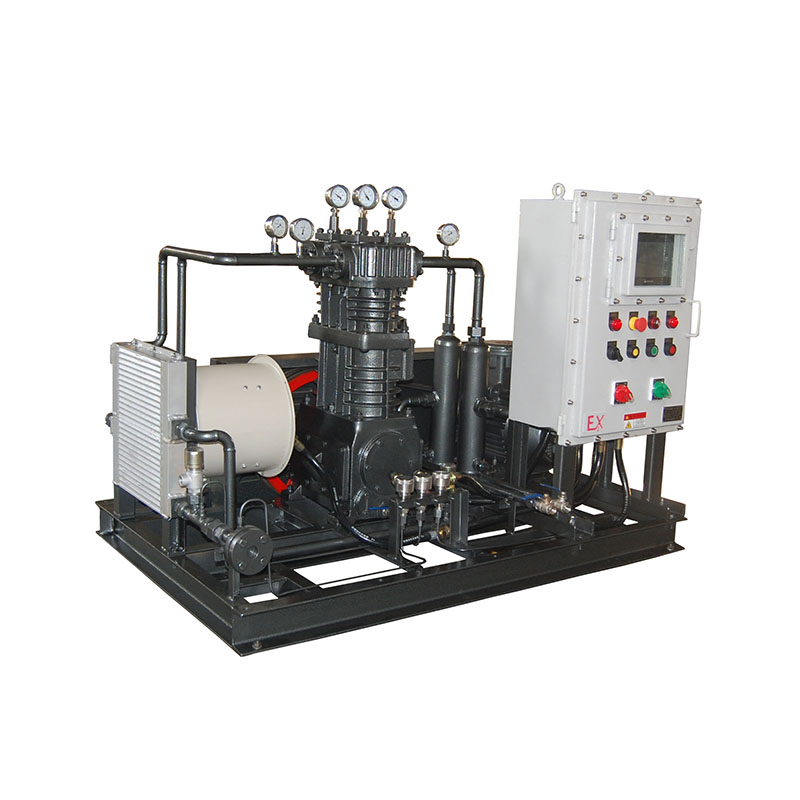

Oil-gas compressor

Product Item :
Category： GAS Compressor
INQUIRY EMAIL

Product Description:

1. Product Overview: Oil-gas compressor is a power equipment used to increase gas pressure in the oil and gas industry to complete key tasks such as production, treatment, transportation and storage. The media they handle are very complex, including:

Natural gas: dry gas, wet gas and acid gas (including HS/CO).

Associated gas: gas produced with crude oil.

Process gas: various gases in refining and processing plants (such as torch gas, hydrocarbon steam and hydrogen).

Others: used for gas injection oil production, gas lift oil production, injection and production of underground gas storage and other special gases.

Due to the particularity of its working environment (offshore platform, desert, polar region) and medium (flammable and corrosive), oil-gas compressor has extremely high requirements in safety, reliability, adaptability and efficiency.

2, performance characteristics:

High reliability & long life: The design life is usually more than 100,000 hours, which can realize 7x24 uninterrupted operation. Key components (such as valve plates, piston rings and bearings) are made of special materials and coatings, which are wear-resistant and corrosion-resistant. Equipped with perfect monitoring and protection system (vibration, temperature and pressure monitoring).

The medium has wide adaptability: it can handle the mixture of light methane and heavy hydrocarbons, as well as the "dirty" gas containing liquid and impurities. For acid gases (including HS), special materials (such as stainless steel and nickel-based alloy) resistant to hydrogen sulfide stress corrosion are used.

nd gas industry chain: upstream (exploration and production), midstream (gathering, transportation, storage and treatment) and downstream (refining and sales). Its performance is directly related to energy recovery, transportation efficiency, production safety and economic benefits. Its development is moving towards intelligence, high integration, higher energy efficiency and better adaptability to unconventional gas and new energy sources (such as hydrogen/co mixed transportation). The choice of compressor depends on many factors such as gas composition, pressure/flow demand, site environment, energy availability and life cycle cost.

Oil-gas compressor technical parameters:

Compressor	Product Model		VW-0.66/30-100
	Type		V type
	Compressed medium		Oil-gas
	mass flow rate (kg/h)		97
	Compression stage		2
	Cylinder number		2
	Vibration intensity（MM/s）		≤8
	Leakage rate		＜0.001%
	driving mode		coupling
	Noise (sound pressure level) dB(A)		≤105
	Cooling mode		Water cooling
	Rotational speed (r/min)		740★
	Suction pressure( bar)		30
	Discharge Pressure(bar)		100
	Suction temperature (℃)		≤40
	Exhaust temperature (℃)		≤160After cooling≤Ambient temp + 10 ℃
	Lubrication type	Crankshaft, connecting rod, cross head	Oil lubrication
		Cylinder, Packing Cylinder, Packing	Oil-free lubrication
Motor	Model		YBX3-315L1-8
	Explosion-proof grade		DIICT4
	Rotational speed (r/min)		740★
	Rated voltage (V)		380
	Frequency range（Hz）		50
	Rated current (A)		178
	Rated power (Kw)		90
Compressor size (L×W×H) mm			≈4200×2000×1600★
Weight（kg）			≈5500
