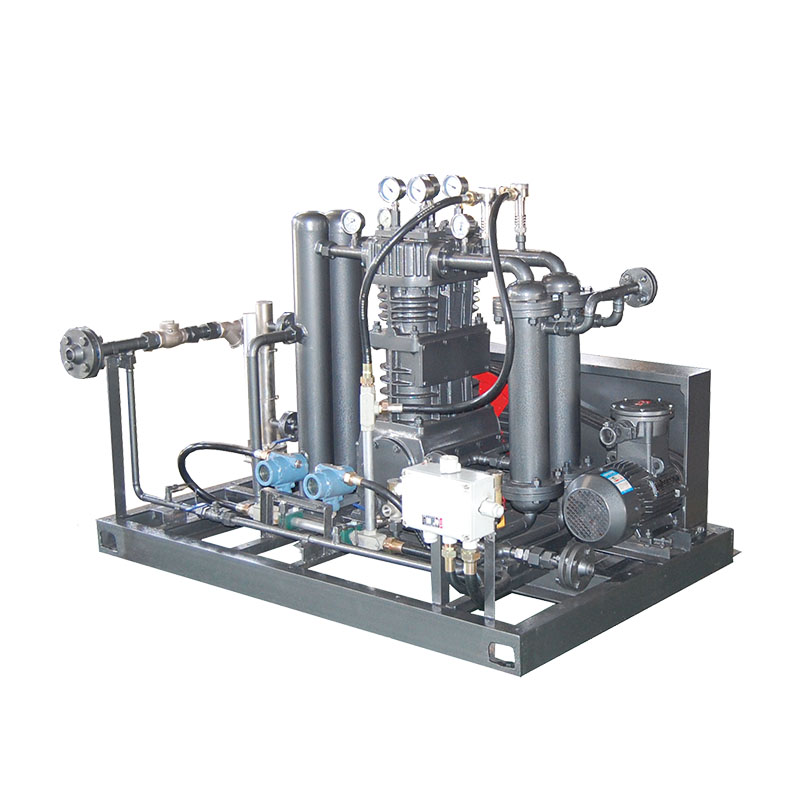

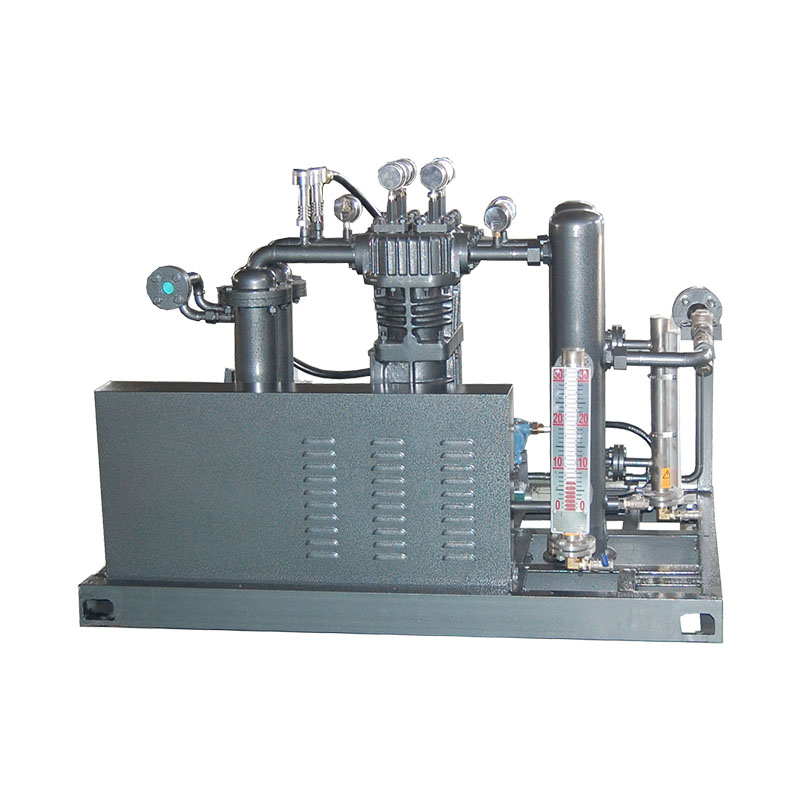

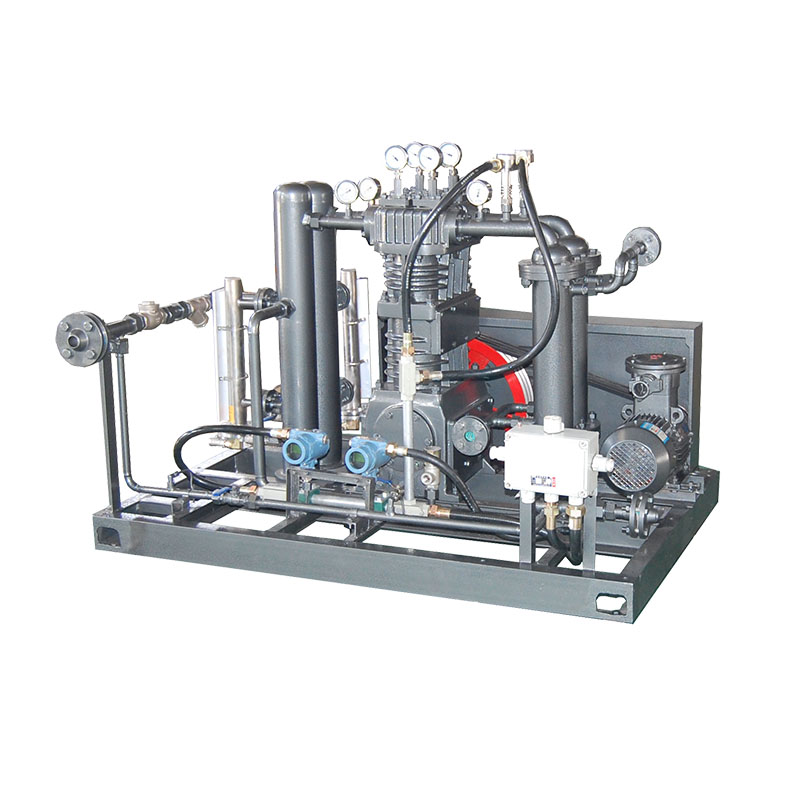

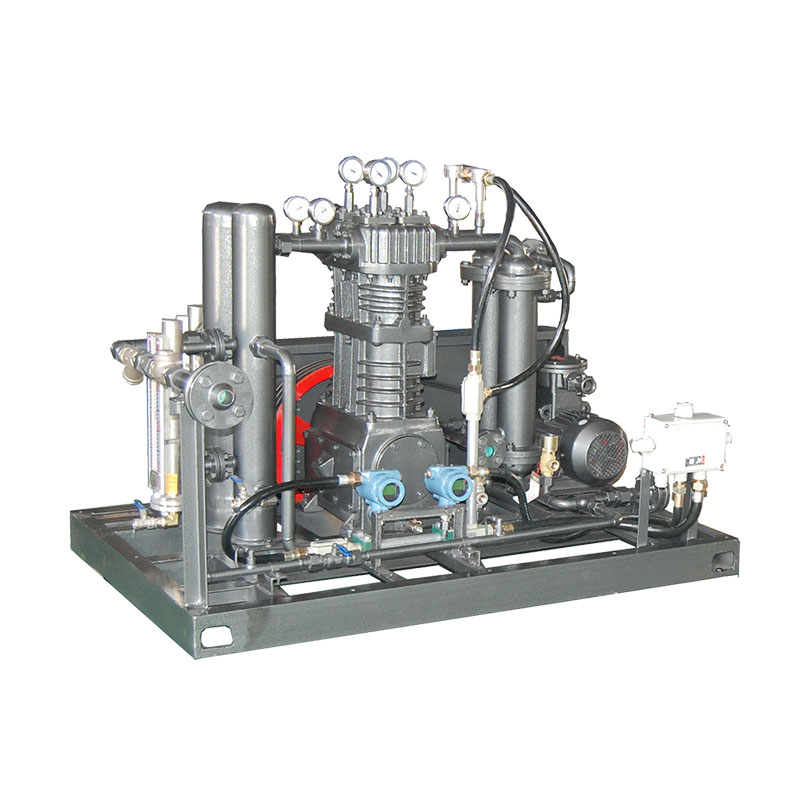

1. Product Overview: Nitrogen compressor is a kind of power equipment specially used for compressing and conveying nitrogen (N). It is not simply using air compressor for nitrogen, but a system specially designed and optimized for the physical and chemical characteristics of nitrogen (inertia, low molecular weight, high compressibility) and the requirements of extremely high purity and safety of nitrogen in industrial applications. Its core task is to raise the low-pressure nitrogen from the air separation plant to the medium-high pressure state required by the process, and to ensure that the purity of nitrogen is maintained during the whole compression and transportation process. Nitrogen compressor is the key "heart" equipment connecting nitrogen production unit and gas terminal.
2. Characteristic performance: Nitrogen compressor is different from ordinary air compressor. All the design and material selection serve to maintain or improve the purity of nitrogen to the greatest extent during the compression process. It is a set of highly specialized engineering solutions with the core goal of ensuring gas purity and system safety.
3. Application scope: Nitrogen compressors are widely used in petroleum, chemical and natural gas, electronics and semiconductors, and food and beverage processing.
nitrogen compressor technical parameters：
Compressor | Product Model | VW-8.83/0.15-5 | |
Type | V type | ||
Compressed medium | nitrogen | ||
Standard volume flow (Nm³/h)
| 190~500 | ||
Compression stage | 2
| ||
Cylinder number | 2 | ||
driving mode | coupling | ||
Noise (sound pressure level) dB(A) | ≤105 | ||
Vibration intensity（MM/S） | 8 | ||
Leakage rate | ＜0.001% | ||
Cooling mode | water cooling | ||
Rotational speed (r/min) | 740★ | ||
Suction pressure( kg/cm2 ) | 0.15 | ||
Discharge Pressure( kg/cm2 ) | 5.0 | ||
Suction temperature (℃) | ≤50 | ||
Discharge temperature (℃) | ≤160After cooling≤Ambient temp + 10 ℃ | ||
Lubrication type
| Crankshaft, connecting rod, cross head | Oil lubrication | |
Cylinder, Packing Cylinder, Packing
| Oil-free lubrication | ||
motor | Model | YBPX3-315S-8 ★ | |
Rotational speed (r/min) | 740★ | ||
Rated voltage (V) | 415 | ||
Frequency range（Hz） | 30~50 | ||
Rated current (A) | 111 | ||
Rated power (Kw) | 55 | ||
Compressor size (L×W×H) mm | ≈3600*1800*1500★ | ||
Weight（kg） | ≈4500★ | ||
Support processing customization, attributes are for reference only, please consult the manufacturer for details!
