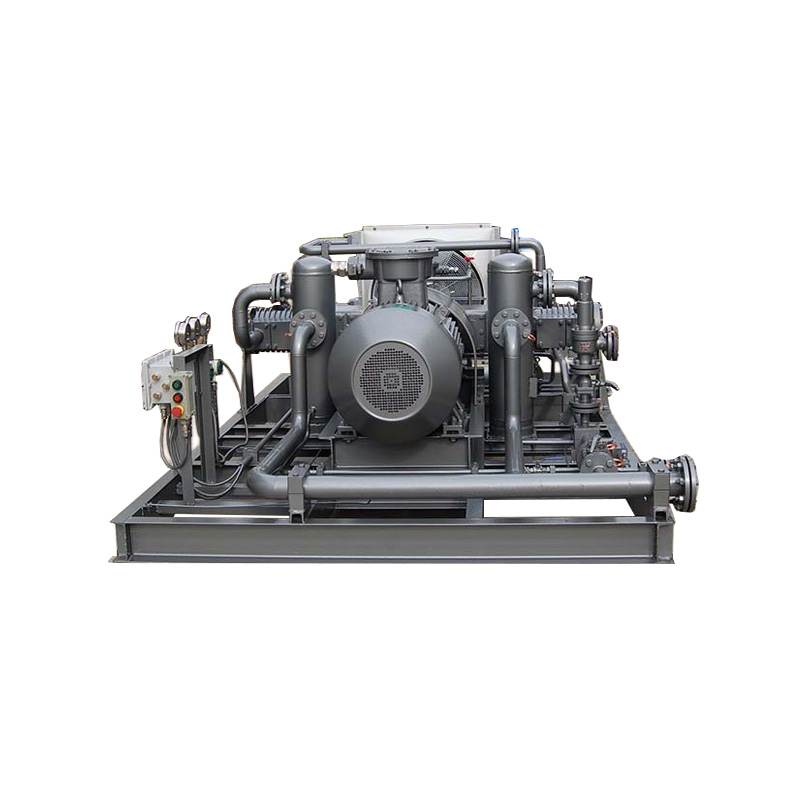

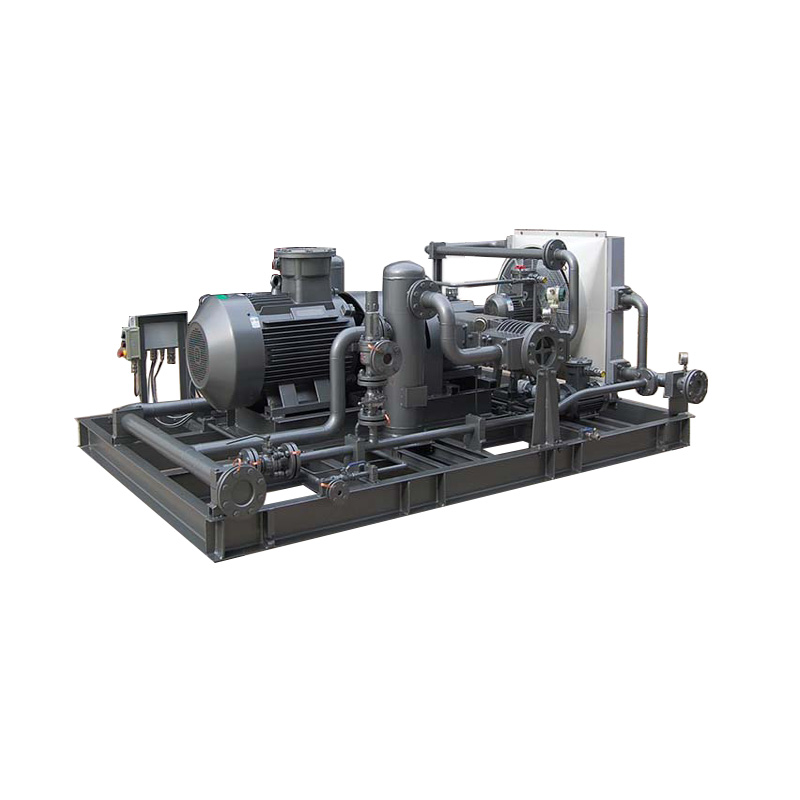

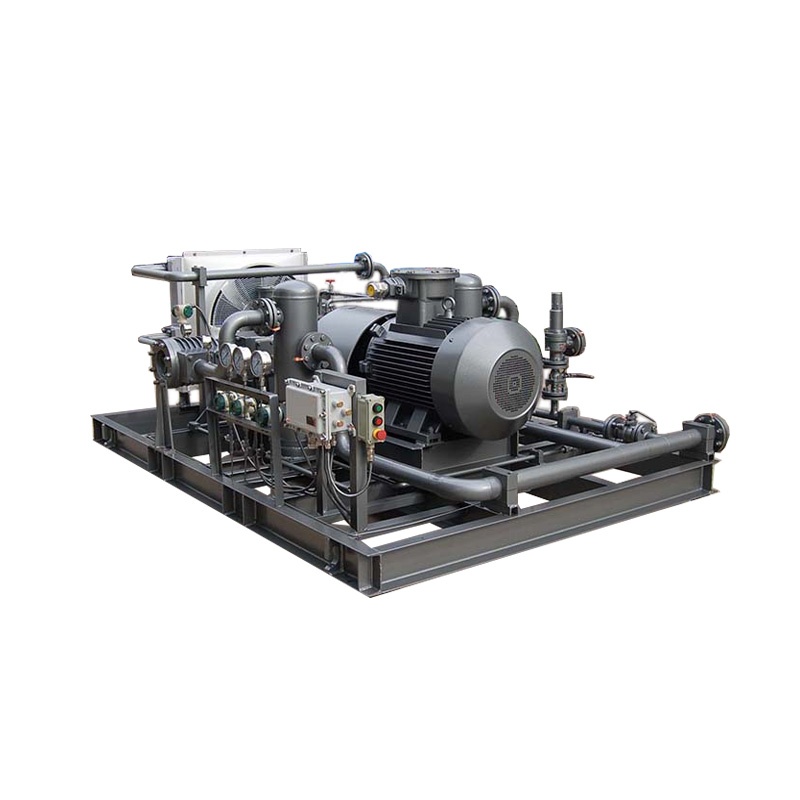

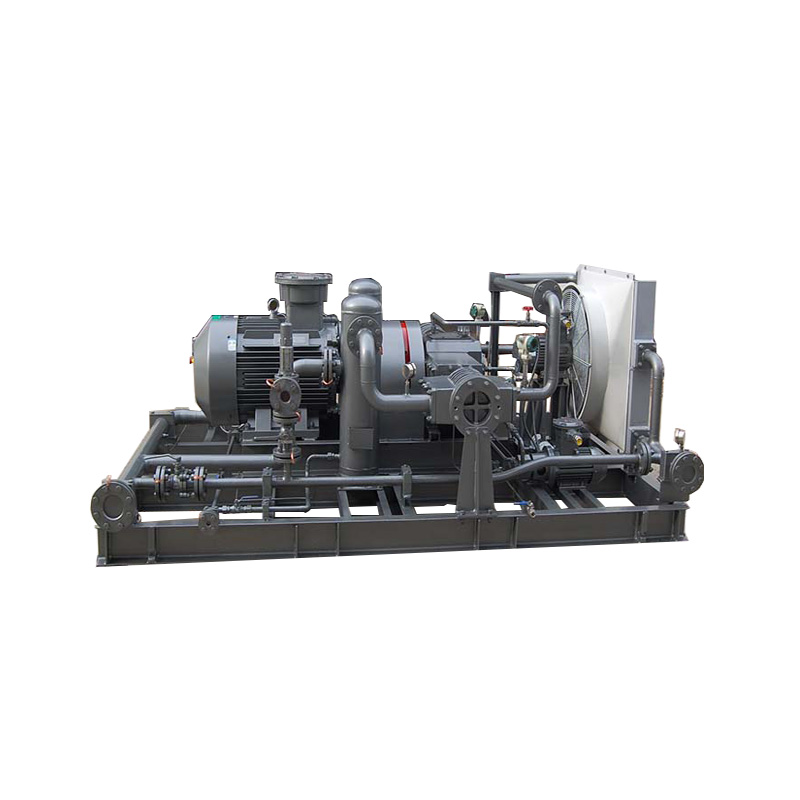

Natural gas compressor

Product Item :
Category： Natural Gas Compressor
INQUIRY EMAIL

Product Description:

1. Product Overview: Natural gas compressor is the core pressurization equipment of natural gas industry chain, which is specially used for pressurized transportation of natural gas, adapting to multi-component hydrocarbon medium of natural gas, and lifting low-pressure natural gas to the pressure required by pipeline network, gas filling station and underground mining.

2. Characteristic performance: the explosion-proof structure design of the whole machine, and the shaft seal system strictly controls the leakage of combustible gas; The unit comes with pressure, temperature and vibration monitoring protection; Adapting to natural gas conditions with a small amount of condensate; Variable frequency adjustment to adapt to flow fluctuation; The material is resistant to hydrogen sulfide and other impurities.

3. Application scope: Natural gas compressor is used for oil and gas well exploitation pressurization, long-distance pipeline pressurization, CNG filling station, city gate station, gas storage injection and production, etc.

Compressor	Product Model		MW-1.17/40-250
	Type		M type
	Compressed medium		CNG
	volume flow(m³/h)		2477
	Compression stage		2
	Cylinder number		2
	driving mode		coupling
	Noise (sound pressure level) dB(A)		≤105
	Vibration intensity (MM/s)		3.5
	Leakage rate		< 0.001%
	Cooling mode		wind cooling
	Rotational speed (r/min)		550★
	Suction pressure( mpa )		4
	Discharge Pressure( mpa)		25
	Suction temperature (℃)		≤40
	Discharge temperature (℃)		≤160After cooling≤Ambient temp + 10 ℃
	Lubrication type	Crankshaft, connecting rod, cross head	Oil lubrication
		Cylinder, Packing Cylinder, Packing	Oil-free lubrication
Motor	Model		YBX3-355L3-4
	explosive-proof grade		DIIBT4
	Rotational speed (r/min)		1490★
	Rated voltage (V)		415
	Rated frequency（Hz）		50
	Rated current (A)		638.5
	Rated power (Kw)		355
Compressor size (L×W×H) mm			≈7000×3000×2500★
Weight（kg）			≈8000
